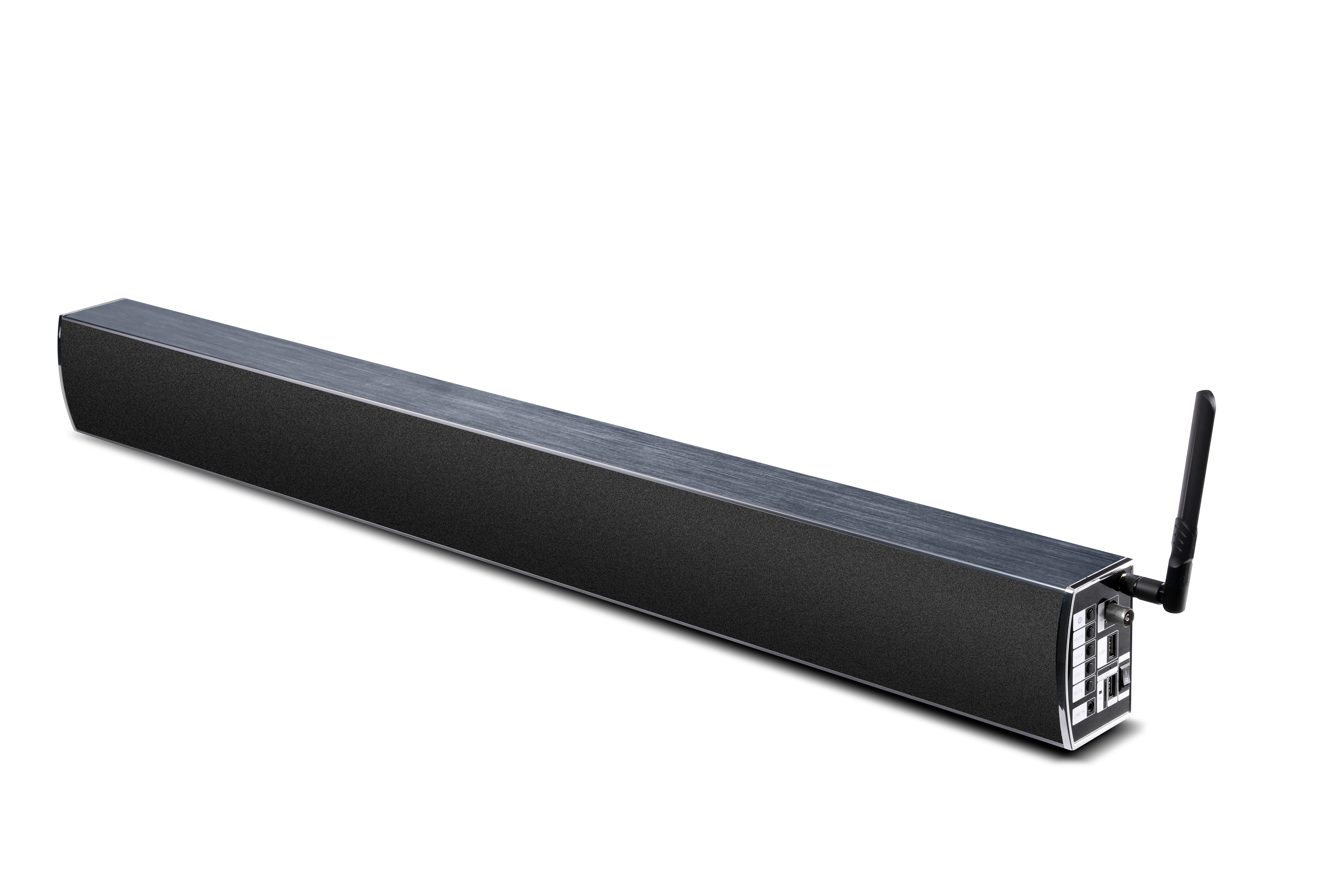

" LORELEY" Smart Sound bar (HSB-S988-V1)

Android system with Internet and 3D surround stereo


  • Android 5.1.1 System, 4 core 2.0GHz CPU.
  • Aluminum alloy, brushed finish, slim and classic wall mounting design.
  • 2.2 channel outputs, 13 Sound-Field model , 3D surround stereo with one-touch.
  • Remote control with infrared remote controller.
  • Video output, 4K Video, TV game and live webcast.
  • Support Ethernet, WIFI and Bluetooth, external WIFI antenna.
  • Multi-Audio inputs and connect external device (ex: TV, Smartphone, DVD, PC etc.).


Model No. HSB-S988-V1
OS Android 5.1.1
CPU Amlogic S905 Quad core 64-bits Cortex A53 Up to 2.0GHz
GPU Penta-Core Mai-450 Up to 750MHz
3D Graphic OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video decoder 4Kp60 10-bit HEVC, 4Kp30 MPEG/VC-1/AVS+/H.264
Video encoder H.264, 1080p@60fps
Memory DDR3 1GB
Inputs DVB-T2, RJ45, USB, TF card, Coaxial cable, Audio
Outputs HDMI, Video
Wireless Wifi, Bluetooth
Output power 70W
Sound Units 2.5 inch full range/15W* 2,
3 inch woofer/15W*2,
Bass diaphragm *1
Frequency Respond 50-20kHz
SNR ≧80dB
Bluetooth version 2.1+EDR
Bluetooth distance ≦10M
Others function Built-in audio DSP processer, Stereo 3D surround, multiple EQ modes, Infrared remote control.
Material Aluminum alloy
Colors Gold, Silver, Black
Dimention 940*95*68mm
Accessories TV adapter, Remote Controller, RCA cable, WIFI Antenna, Wall-mounted screws, Manual
Pack quantity 4 pcs/ctn
